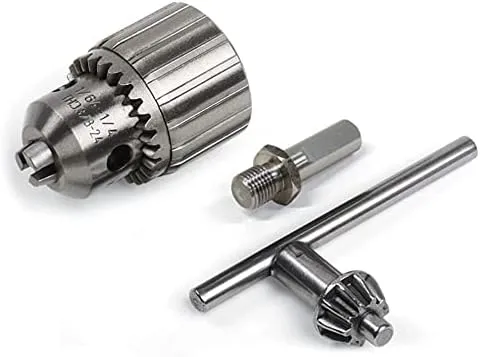

Sherline 3/8 Inch Drill Chuck with Straight Shaft Arbor 5938
3/8 Inch Drill Chuck with Straight Shaft Arbor
This chuck comes with a straight shaft arbor designed to fit in our multi-tool holders with 3/8? mounting holes*. The straight shaft arbor will also work with our 3/8? insert holder tool post (P/N 7600). It has a 3/8? diameter straight shaft with a machined flat for holding in the posts. Ensure the flat surface on the arbor is oriented toward the top of the tool post, so the 10-32 x 3/4? SHC screw will be perpendicular to the flat. This orientation will assure that the arbor does not turn or move when force is exerted on the tool.
Specifications

Chuck Capacity: 3/32? (2.4 mm) ? 3/8? (9.5 mm)
Arbor: Straight shaft for 3/8? tool holders
Includes chuck key
